Jining Tongzhao Machinery Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm me me qhov drilling rig nyob rau hauv Suav teb. Yog hais tias koj yuav mus rau cov lag luam wholesale ntev me me qhov drilling rig ua nyob rau hauv Suav teb, txais tos kom tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Khoom Description

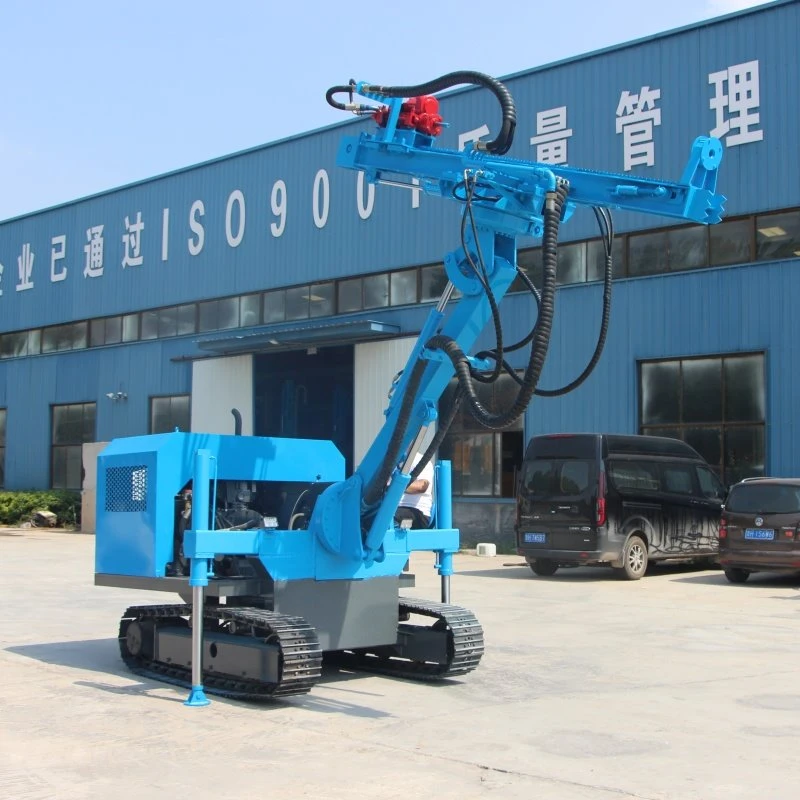

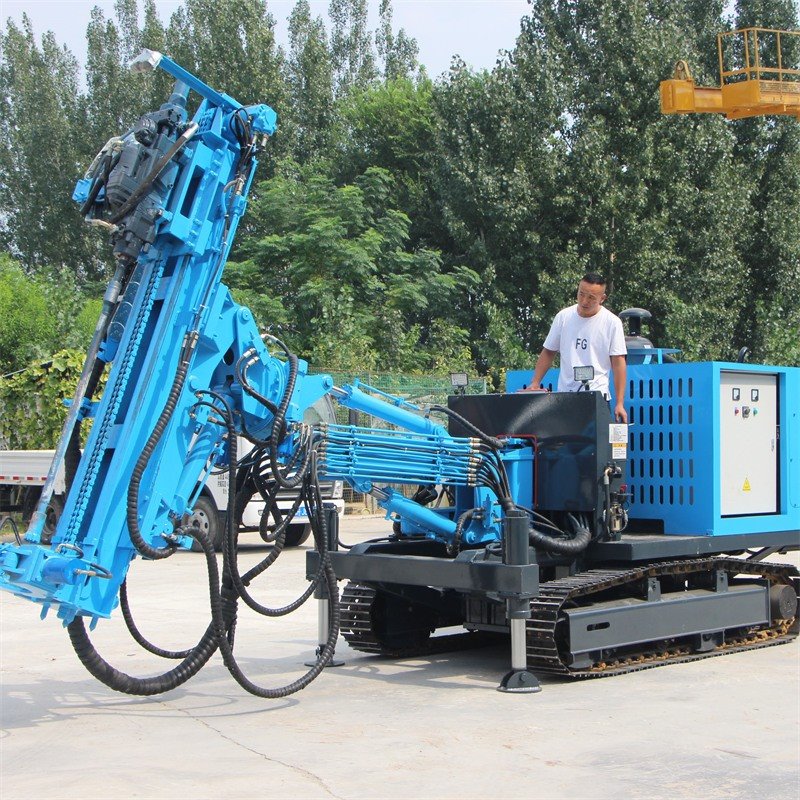

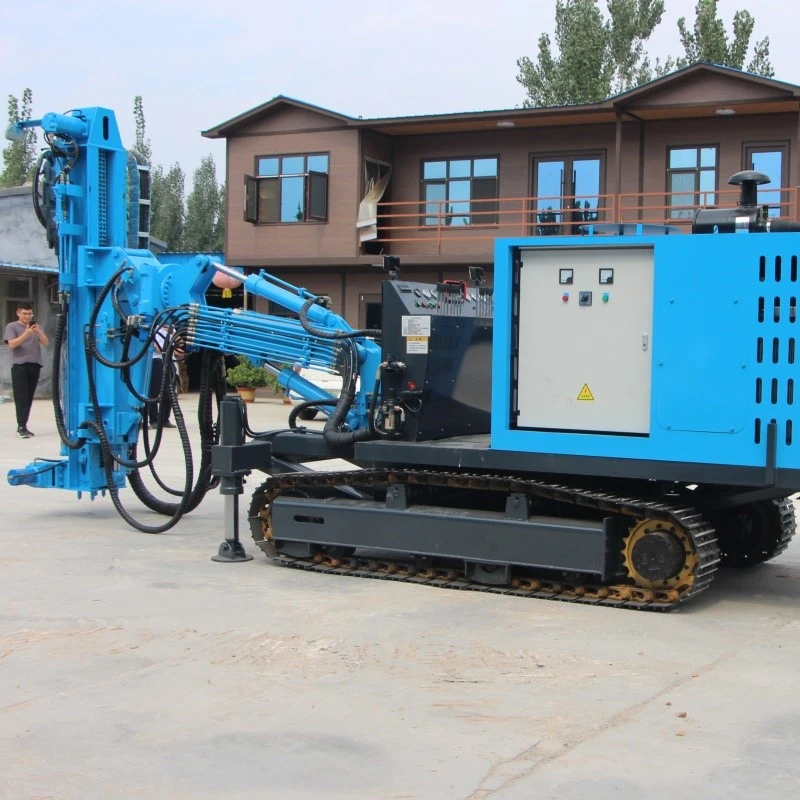

Dab tsi yog Qhov Me Me Drilling Rig?
Nws yog tus kheej -propelled, wheeled los yog tracked drilling tshuab tsim rau pob zeb drilling nyob rau hauv tunnels nrog ntoo khaub lig- seem ntawm li 2 m × 2 m mus txog 4 m × 4 m.
|
Parameter |
Tus nqi |
|
Vertical Qhov siab (m) |
5.6 (nrog rau tus ncej swb) |
|
Crawler Chassis (hli) |
2200 × 1700 |
|
Track khau dav (mm) |
300 |
|
Tsav Tsheb |
TM 10 |
|
Diesel Cav Model |
4108 Yuchai zog |
|
Lub cev muaj zog (kW) |
91 |
|
Drilling Angle |
Kab rov tav / Vertical / Inclined |
|
Hom Lub Taub Hau |
Dual hydraulic zog lub taub hau lossis hydraulic pob zeb xyaum (yeem) |
|
Roj Pump |
Siab - lub twj tso kua mis siab 63/32/32 |
|
Kab rov tav qhov siab (m) |
3 |
|
Qhov tob tob (ib - sijhawm) (m) |
3 (Customizable) |
|
Outriggers |
Ob tug hydraulic outriggers |
|
Radiator |
Hnyav-duty dual hydraulic radiator |
|
Kev them nyiaj yug Slide (mm) |
600 |
|
Propulsion Method / Thrust |
1000 da (tej zaum daN lossis kgf) |
|
Lower Swivel (Tsav) |
21-nti lub cev muaj zog |
|
Upper Swivel (Tsav) |
14-nti ib lub cev muaj zog |
Cov ntawv thov ib txwm suav nrog
Laum thiab moj tej tawg tunnels rau mining los yog civil ua hauj lwm
Tshawb xyuas qhov drilling ua ntej ntawm lub ntsej muag
Pob zeb ntsia liaj qhov rooj qhov drilling (txawm hais tias lub siab bolting rig ua qhov zoo dua)
Kev teeb tsa tus kheej -drilling anchors hauv av muag
Lub qhov dej drilling
Feem ntau qhov me me rigs nqa ib lub pob zeb hydraulic ntawm ib qho kev sib tw. Lub boom tuaj yeem ncav cuag tag nrho lub qhov taub ntsej muag thiab cov phab ntsa tsis txav cov cab kuj txhua ob peb qhov. Lub tshuab tag nrho yog nqaim txaus (feem ntau hauv qab 1.5 m dav) kom dhau los ntawm qhov qhib me me uas twb muaj lawm los yog thauj mus rau hauv lub tawb nqa khoom.
Lub hwj chim tuaj yeem yog diesel (rau qhov chaw tsis muaj hluav taws xob hluav taws xob), hluav taws xob (huv thiab nyob ntsiag to), lossis diesel hluav taws xob ob lub zog. Cov qauv hluav taws xob muaj ntau rau cov qhov ntev ntev uas qhov cua yog qhov kev txhawj xeeb.
Carrier thiab Mobility
Diesel lossis hluav taws xob? Hluav taws xob rigs yog pheej yig dua los khiav thiab xoom emissions, tab sis koj yuav tsum tau tswj ib tug trailing cable. Diesel rigs muaj kev ywj pheej ntau dua tab sis tsim cov pa taws - koj xav tau qhov cua zoo. Dual-power (diesel tsav, hluav taws xob laum hydraulics) yog qhov zoo tshaj plaws ntawm ob lub ntiaj teb.
Log tsheb los yog lem? Cov lem tuav cov av ntxhib zoo dua thiab faib qhov hnyav, tab sis lawv qeeb dua thiab hnav tawm ntawm cov pob zeb hauv av. Roj hmab log tsheb nrog ib tug zoo tread feem ntau zoo. Qee lub rigs me siv cov log tsheb uas muaj npuas dej los tshem tawm cov tiaj tus.
Gradeability - nrhiav tsawg kawg yog 14℃(25%) qib. Tej qhov me me tej zaum kuj muaj qhov tob tob.
FAQ
Q: Lub qhov me me tuaj yeem ua rau lub rig no ua haujlwm li cas?
A: Feem ntau cov rigs me me yuav tsum muaj qhov tsawg kawg nkaus ntawm qhov siab ntawm 2.2 m dav × 2.2 m siab kom ua haujlwm tau zoo. Yog tias koj lub qhov me me dua li qhov ntawd, koj tab tom saib ntawm cov khoom siv tes tuav los yog kev cai ultra-compact rig (qee lub tuam txhab suav muab 1.2 m dav hluav taws xob rigs rau mine entryways). Rau 2.5 m × 2.5 m thiab siab dua, tus qauv me me ua haujlwm zoo.
Q: Ib lub rig puas tuaj yeem tuav ob qho tib si drilling thiab bolting?
A: Yog - yog tias koj xaiv ib lub rig nrog lub bolt tuav txuas. Txawm li cas los xij, lub siab bolting rig yog qhov zoo dua yog tias koj ua bolting feem ntau. Rau ib tus neeg cog lus me me uas ua ob qho tib si, "drilling + bolting" combo rig yog qhov tsim nyog tsis txaus siab. Nrhiav ib lub rig uas lees txais ob lub pob zeb laum (rau lub qhov tawg) thiab lub bolt feeder (rau bolts). Kev hloov pauv yuav siv sijhawm 30-60 feeb.
Q: Dab tsi yog qhov drilling ceev hauv pob zeb nyuaj?
A: Nrog rau 9-11 kW hydraulic pob zeb xyaum, koj tuaj yeem laum lub qhov 45 hli txog 150 MPa granite ntawm li 0.8-1.0 m ib feeb. Los ntawm 80 MPa limestone, nyob ib ncig ntawm 1.5-2.0 m ib feeb. Cov no yog cov zauv teb tiag tiag, tsis yog kuaj mob. Yog li lub qhov tob 3.5 m yuav siv sij hawm 2-4 feeb nyob ntawm pob zeb.
Q: Kuv puas xav tau lub tshuab cua compressor ntawm lub rig?
A: Tsis yog - hydraulic pob zeb xyaum tsis xav tau cua compressed rau drilling (lawv siv dej ntws los ntxuav cov txiav). Txawm li cas los xij, yog tias koj tseem siv lub qhov rauj rau lub pob zeb nyuaj lossis qhov loj, ces koj xav tau cua compressed. Qee cov rigs me me muaj qhov xaiv tau onboard ntsia hlau compressor. Nyob rau hauv feem ntau me me qhov, ib tug cais trailer-mounted compressor yog pheej yig dua thiab yooj yim rau khaws cia.
Q: Kuv yuav hloov cov khoom siv tho thiab cov hlau ntau npaum li cas?
A: Khoom: 80-150holes rau lub pob carbide me ntsis hauv cov pob zeb tawv, ntau dua hauv cov pob zeb mos. Regrinding tuaj yeem ua rau lub neej ntev.
Steels (drill rods): 100-200holes, nyob ntawm pob zeb abrasiveness thiab ncaj. Bent rods nkim zog thiab tawg sai dua.
Khaws cov khoom seem ntawm qhov chaw - ib qho tawg me ntsis lossis daig pas nrig nres ntau lawm.
Q: Ua li cas txog plua plav? Tunnels tau plua plav sai.
A: Feem ntau cov rigs muaj cov dej txhaj tshuaj los ntawm cov laum hlau - dej ntws hauv nruab nrab ntawm tus pas nrig thiab tawm ntawm me ntsis, ntes cov plua plav ntawm lub qhov dab tshos. Koj xav tau cov dej huv huv (tuaj yeem yog lub tank ntawm lub rig lossis lub hose los ntawm txoj kab dej hauv qhov dej). Rau qhuav drilling (yog tias dej tsis tso cai), koj xav tau cov khoom siv plua plav - tab sis qhov no tsis zoo thiab tsis tshua muaj.
