Khoom Description
Hauv kev tsim kho qhov av, lub sijhawm yog nyiaj. Qhov no yog qhov tseeb tshwj xeeb tshaj yog rau qhov loj -section lub qhov loj, qhov twg ib zaug -boom tshuab qeeb dhau rau kev ua haujlwm, thiab kev siv tes ua haujlwm tsis tuaj yeem ua raws li lub sijhawm. Qhov ntawd yog qhov tseeb thaum koj xav tau qhov no dual -boom qhov drilling jumbo; nws yog lus nruab nrog ob "caj npab"-ob qho tib si ua haujlwm tag nrho- ua kom muaj txiaj ntsig zoo rau qhov kev txwv tsis pub dhau.
|
Parameter |
Tus nqi |
|
Vertical Height (nrog rau pub). |
8-15m (customizable) |
|
Cav |
Yuchai zog (customizable) |
|
Lub cev muaj zog (x2). |
55 kWs |
|
Hydraulic twj tso kua mis (x2). |
K3V112S-112R-32 |
|
Lub taub hau taub dej (x2). |
90 m |
|
Kev sib hloov sab saud (x2). |
360℃nruam |
|
Boom viav vias (sab laug / sab xis). |
± 45 degree |
|
Txoj kev ua haujlwm |
Dual Lower Operator Chaw nres tsheb |
|
Ua haujlwm Boom (x2). |
Ob -theem ib leeg boom |
|
Lub taub hau zog |
PD-200L (Hydraulic pob zeb xyaum, xaiv tau) |
|
Drilling Angle |
Kev pab tag nrho |
|
Pub hom (x2). |
Feed Slide (x2) |
|
Ib Leeg Pub Length |
4m rau ib tus pas nrig (customizable) |
|
Propulsion Tsav (x2). |
Hydraulic pub |
|
Drilling Diameter |
38-76 hli |
|
Travel System |
Kaw - voj Hydraulic System |
|
Tsav System |
4-Wheel Tsav |
|
Nres System |
Cua - txiav nres |
|
Pem hauv ntej / rear qag |
WL96-H2A-Q2A |
|
Torque Converter |
Qauv 340 |
|
Tyre |
880.295-20/7.5 |
|
Cav Roj Pump |
40/40 Siab - Roj Pump |
|
Max Travel Ceev |
10 Km/h |
|
Kev pab |
Tag nrho - lub cev tiv thaiv (nrog rau lub cav hood) |
|
System Roj Siab |
20 MPa |
|
Stabilizer ceg |
4 hydraulic outriggers (pem hauv ntej, sab laug, txoj cai extendable) |
|
Radiator (x2). |
FLJ-136 (Jintai Brand) |
Ob Lub Cev, Ua Haujlwm Zoo Tshaj Plaws

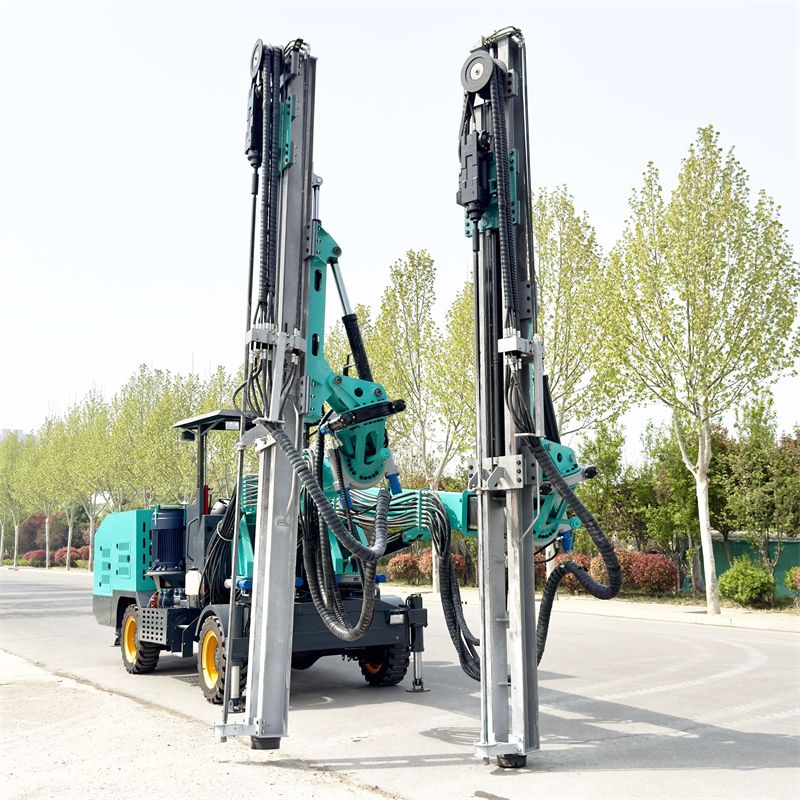

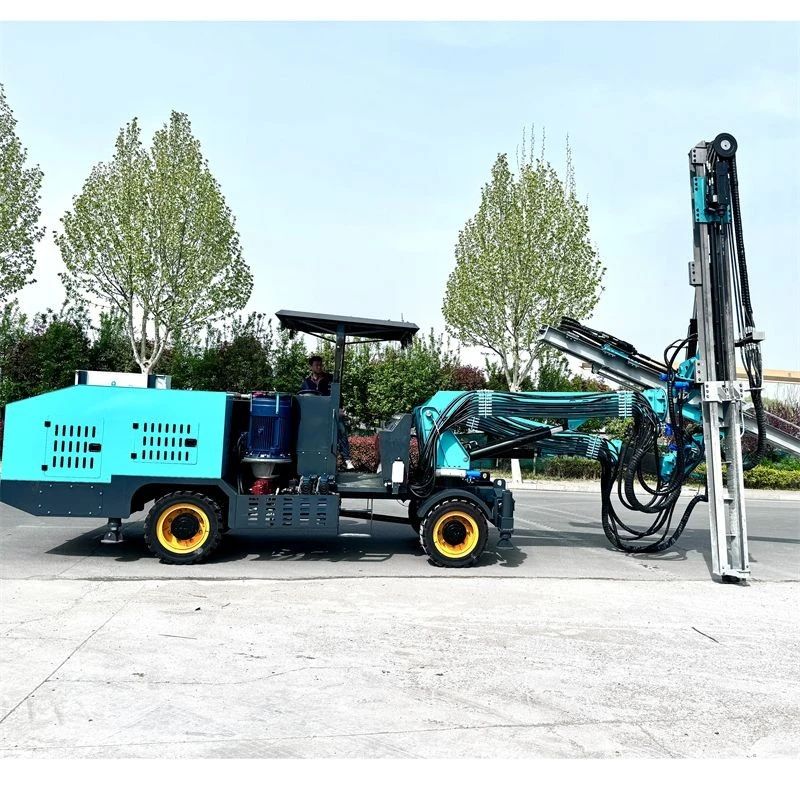

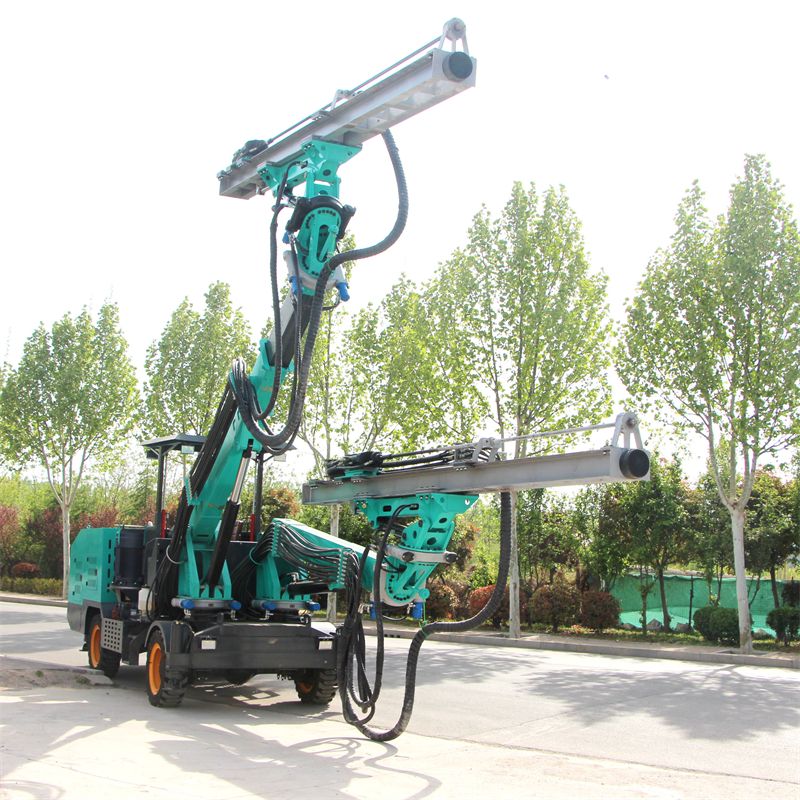

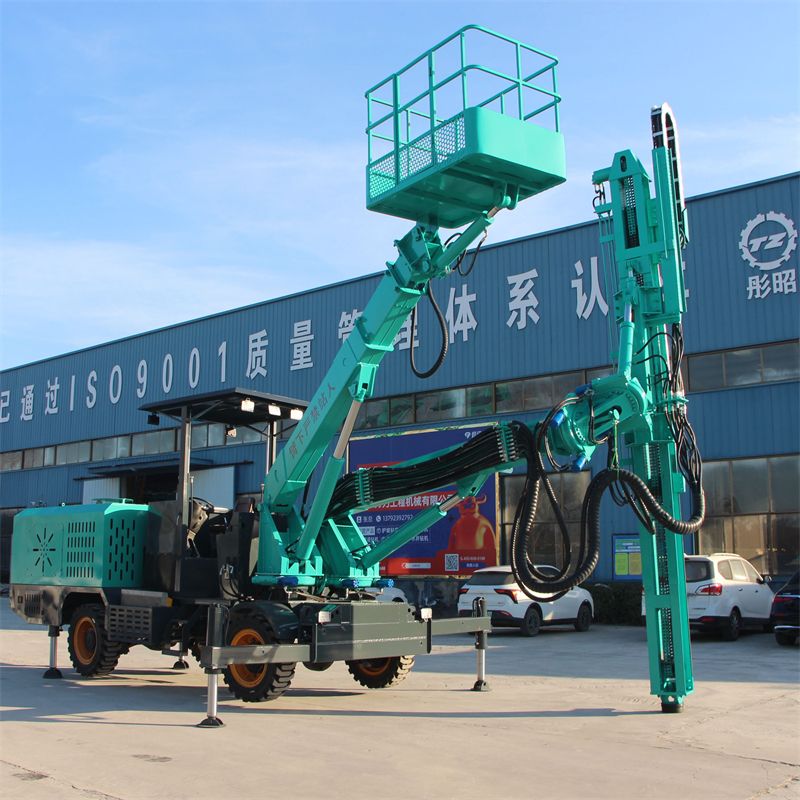

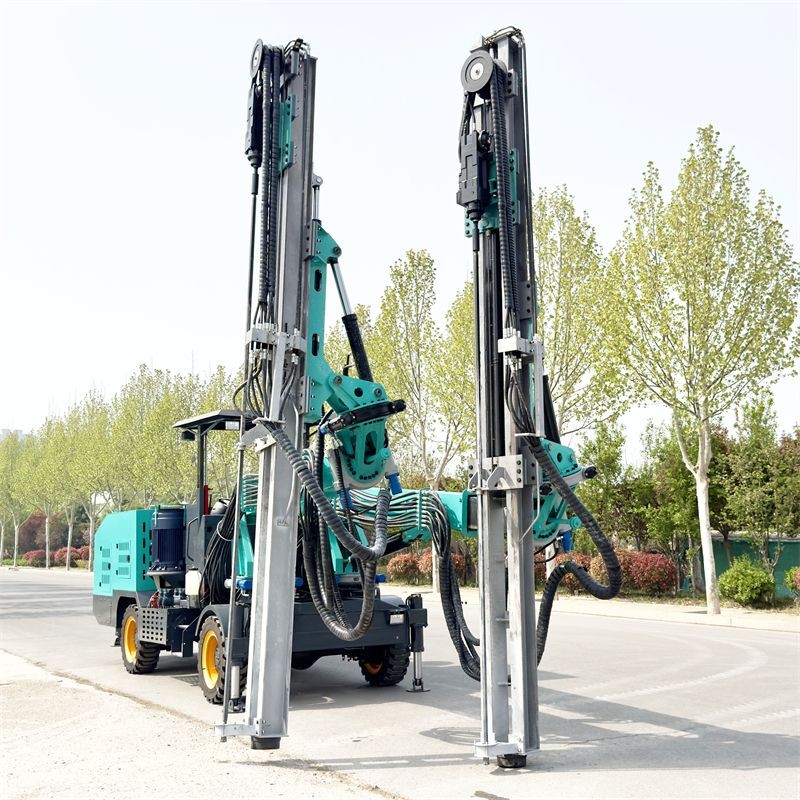

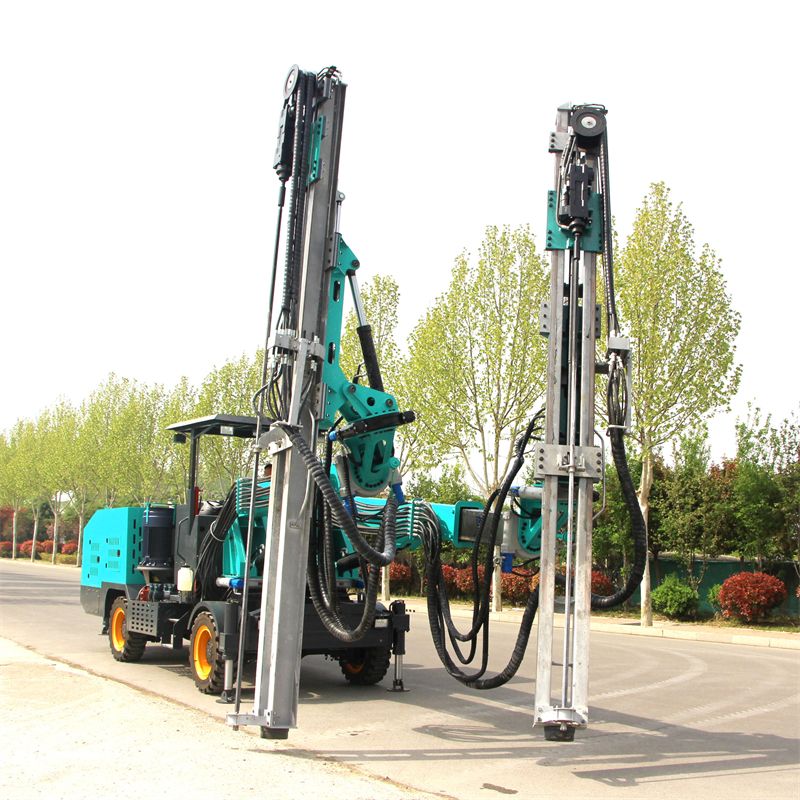

Qhov tshwj xeeb tshaj plaws ntawm lub tshuab no yog nws ob lub -boom tsim. Txhua boom muaj ob -section articulated caj npab, muab tshwj xeeb yooj yooj yim. Qhov tseem ceeb, ob txhais tes no ua haujlwm ntawm nws tus kheej; txhua tus muaj peev xwm ua tiav 360-degree tig thiab tuaj yeem ua viav vias 45 degrees rau sab laug lossis sab xis. Txawm hais tias sab saum toj, hauv qab taw, lossis nyob rau sab, tsis muaj qhov muag tsis pom lossis tsis tuaj yeem nkag mus tsis tau. Tsis tas li ntawd, nws muaj peev xwm "txhua qhov kev taw qhia" drilling, tso cai rau koj los laum raws nraim qhov twg thiab qhov koj xav tau.
Laum mus rau qhov tob tob -Tsis tas yuav tsum muaj pas nrig txuas
Txhua qhov ntawm nws cov kab noj hniav siv lub telescopic tsim, muaj peev xwm drilling ib qho -dhau qhov mus txog 4 meters sib sib zog nqus (nrog cov kev xaiv rau ntev ntev ntawm customization). Qhov no txhais li cas hauv kev xyaum? Yav dhau los, drilling qhov tob yuav tsum muaj ntau qhov nres rau ob peb qhov kev xyaum ntxiv; tam sim no, lub tshuab tuaj yeem tsav 4 meters ncaj nraim nrog ib qho thrust. Qhov no txo qis downtime thaum lub sij hawm drilling txheej txheem thiab txo qhov kev pheej hmoo ntawm lub laum me ntsis tau jammed. Nws npog ib txoj kab uas hla ntawm 38 mus rau 76 millimeters -txawm yog rau lub qhov blasting lossis precision thauj tog rau nkoj ntsia liaj qhov rooj qhov, lub tshuab no ua haujlwm tau yooj yim.
Dual Fais Fab Systems: Lub Plawv Siab Zoo
Tsis txhob raug dag los ntawm kev xyaum ntxiv npab - lub hauv paus ntawm lub tshuab no tau raug kho dua tshiab thiab kho dua tshiab. Nws yog nruab nrog lub cev muaj zog ywj siab- cov twj tso kua mis sib dhos, txhua qhov xa tawm lub zog ntawm 55 kW, thiab muaj lub zog hnyav - lub luag haujlwm hydraulic twj tso kua mis ( qauv K3V112S-112R-32). Raws li kev sib koom tes ua haujlwm, lub siab hydraulic tseem nyob ruaj khov ntawm 20 MPa, tso cai rau nws yooj yim nkag mus txawm tias cov pob zeb nyuaj tshaj plaws. Tsis tas li ntawd, nws tuav lub Yuchai diesel cav raws li nws lub zog tsav qhov chaw, kom ntseeg tau tias kev ua haujlwm tsis muaj kev cuam tshuam txawm tias nyob rau hauv lub zog poob.
Lub "Agile Giant" ntawm Lub Chaw Haujlwm
Txawm hais tias nws txoj kev ua haujlwm nrawm, lub tshuab no nyob deb ntawm cumbersome. Nws nta lub kaw - voj hydraulic system thiab plaub -log- tsav powertrain. Ua ke nrog Model 340 torque converter, nws tuaj yeem ncav cuag qhov siab tshaj plaws mus ncig ntawm 10 kilometers ib teev - ua rau nws ua tau zoo heev rau lub tshuab ntawm nws qhov loj me. Nws tau nruab nrog 880/295-20/7.5 dav-cov log tsheb engineering, thiab- txhawb nqa los ntawm kev ruaj ntseg ntawm huab cua- txiav nres nres-nws khiav ob qho tib si tsis tu ncua thiab nrawm hauv qhov av. Thaum ua haujlwm, plaub lub hydraulic outriggers txuas ntxiv los muab kev txhawb nqa, thaum lub tsheb tag nrho cov kev tiv thaiv npog raug txo qis rau hauv qhov chaw, ua kom muaj kev nyab xeeb thiab tiv thaiv plua plav.
