Jining Tongzhao Machinery Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm crawler -mounted dual- caj npab tunnel pob zeb bolting rig nyob rau hauv Suav teb. Yog hais tias koj yuav mus rau cov lag luam wholesale ntev crawler-mounted dual- caj npab tunnel pob zeb bolting rig ua nyob rau hauv Tuam Tshoj, txais tos kom tau pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.

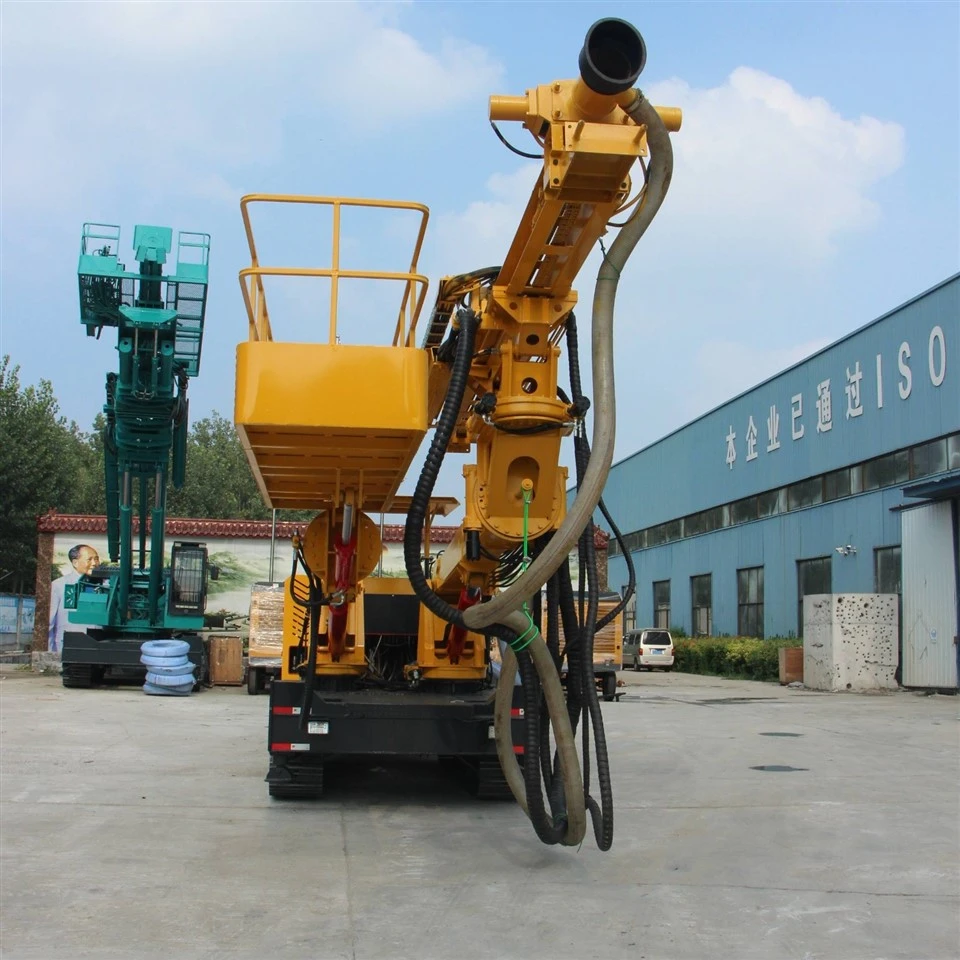

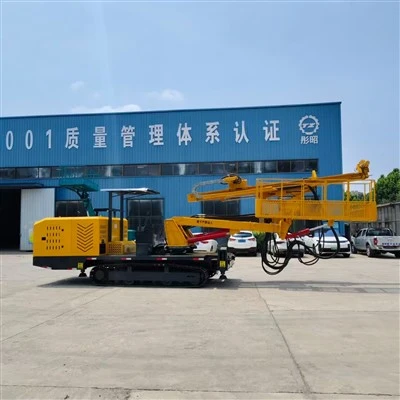

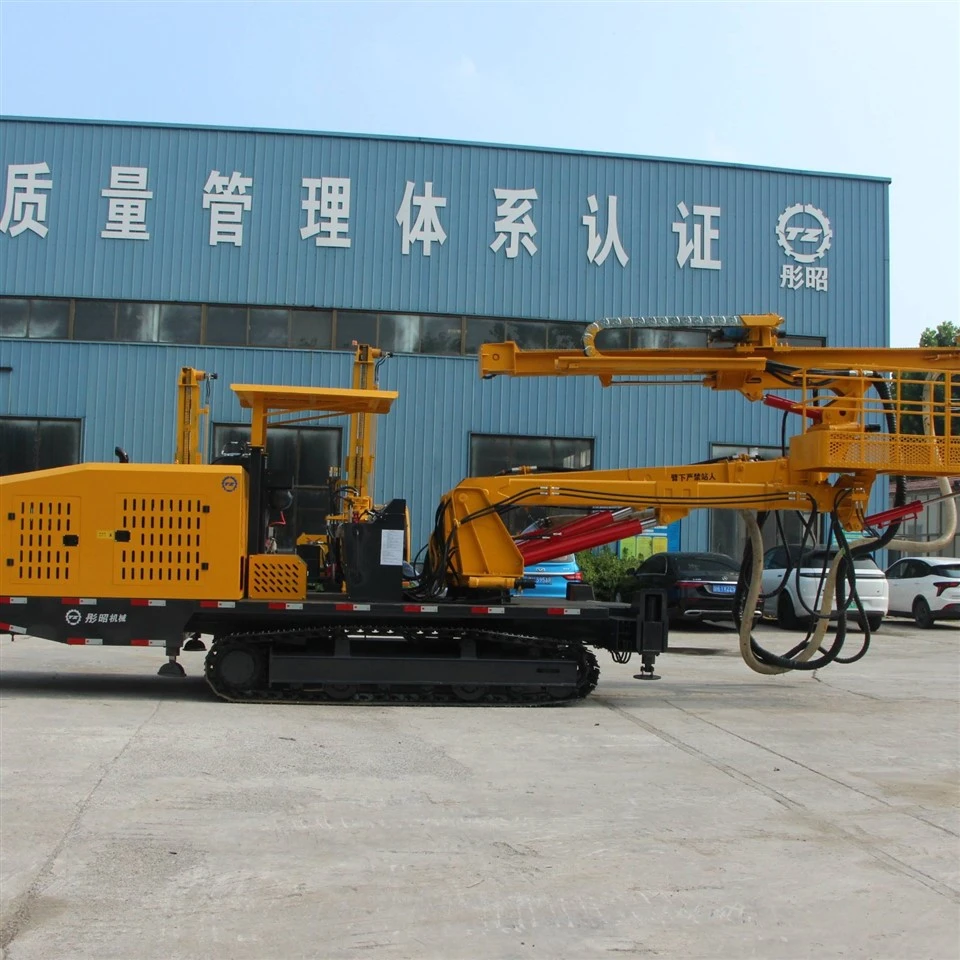

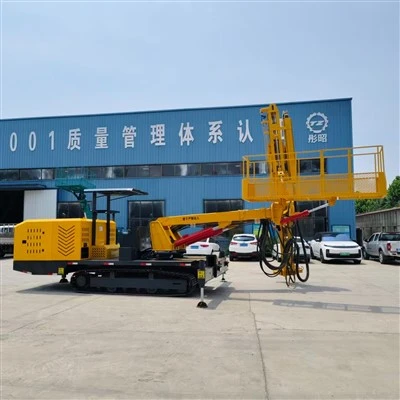

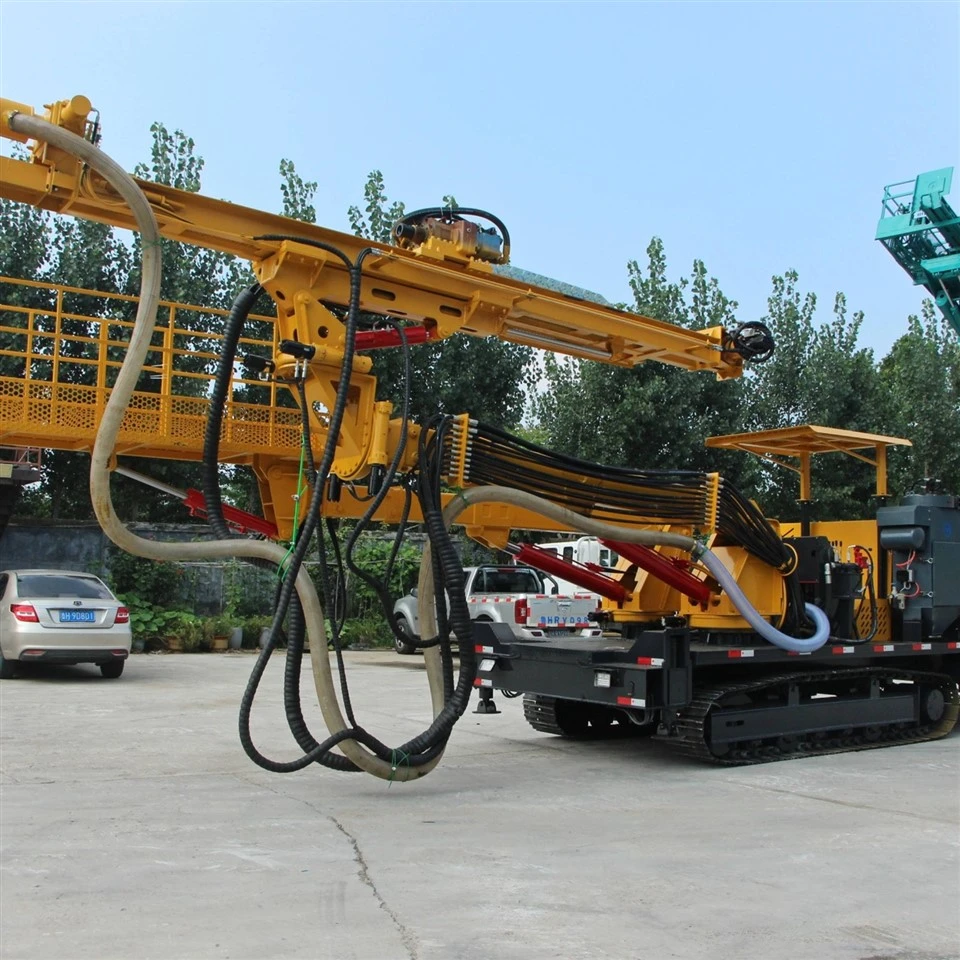

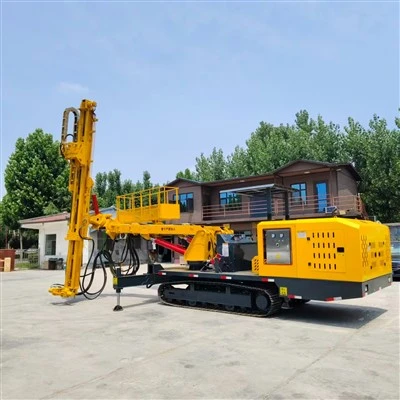

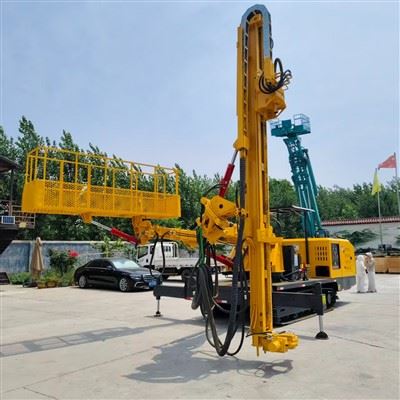

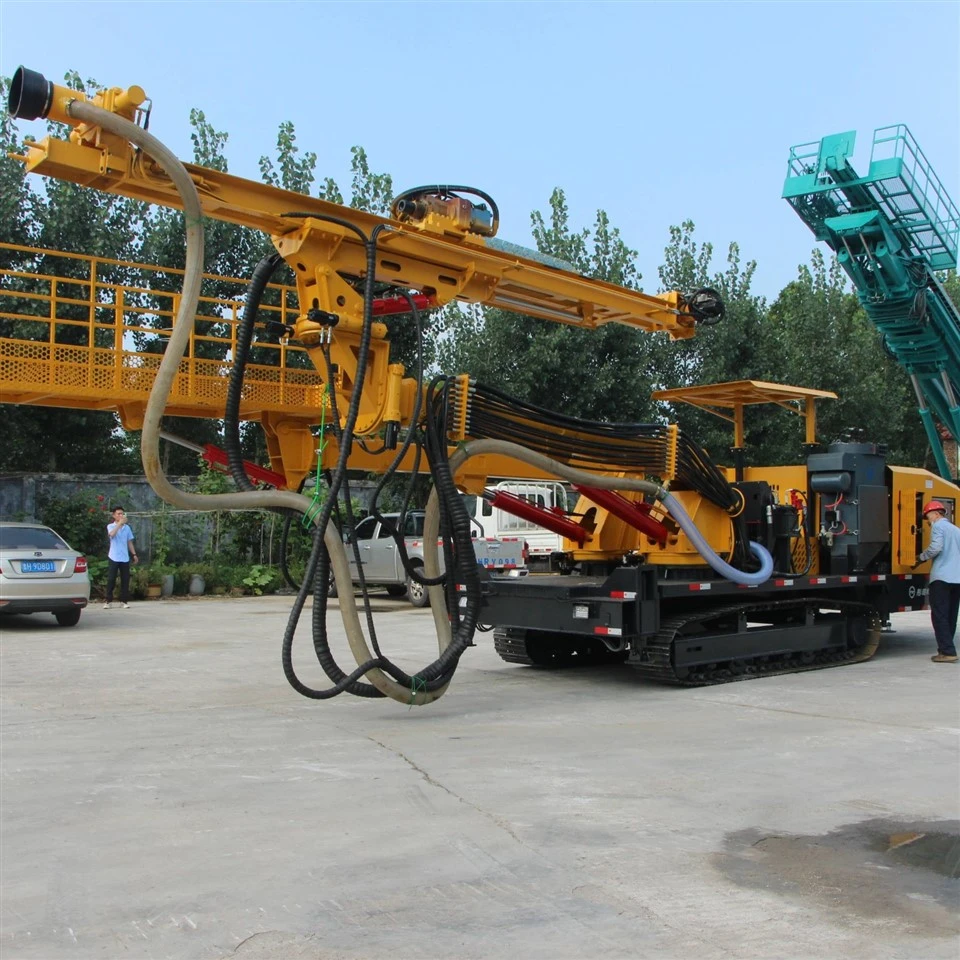

Crawler-mounted dual- caj npab tunnel drilling rig, tseem hu ua dual- caj npab pob zeb drilling jumbo, yog tag nrho tsis siv neeg hydraulic drilling cov cuab yeej tshwj xeeb tsim rau hauv av xws li tunnels, mine txoj kev, hydraulic tunnels, thiab underground utility corridors. Cov cuab yeej nta crawler txav thiab synchronized ua haujlwm ntawm dual drilling. Nrog nws lub cev compact thiab muaj zog maneuverability, nws yog tshwj xeeb tshaj yog haum rau kev tsim kho nyob rau hauv roob tunnels, nqaim caverns, thiab complex av nkos los yog pob zeb qhov chaw. Nws yog dav siv nyob rau hauv txoj kev loj railway excavation, blasting drilling, thiab pob zeb ntsia liaj qhov rooj txhawb nqa drilling.
| 13-15 meters ob sab caj npab qhov parameter rooj | |
| Vertical Qhov siab (m) | 13-15 (nrog rau 4 m stroke swb ncej) |
| Diesel Cav Model | Plaub-lub tog raj kheej Yuchai |
| Cav Fais Fab / Ceev | 75-130 kW / 2600 r / min |
| Fais Tsav | 55 kW ua |
| Lub cev muaj zog | K3V90‑45 |
| Lub taub hau | 120 |
| Upper Swing | 17-nti 360 degree |
| Qeb Swing | 360℃tig |
| Lub kaum sab xis (m) | 1 |
| Hom kev ua haujlwm | Dual kev ua haujlwm qis dua, kev ua haujlwm qis qis, thiab kev ua haujlwm xiav xiav chaw taws teeb tswj |
| Txhawb nqa caj npab | 2-section ib leeg boom |
| Ua Haujlwm Platform Arm | 2-section ib leeg boom |
| Hom Lub Taub Hau | Dual hydraulic zog lub taub hau / hydraulic pob zeb xyaum (yeem) |
| Drilling Angle | Drills kab rov tav / inclined / ntsug qhov |
| Chain-type Slide Frame | 4m rau dv |
| Pressurizing Tsav | 1000 |
| Drilling txoj kab uas hla (mm) | 42–89 |
| Tsav Tsheb | TM 22 |
| Track (mm) | 4000–2600 |
| Track Khau Dav | 400 |
| Cav Roj Pump | High-pressure twj tso kua mis 63/32/32 |
| Outriggers | Plaub taag hydraulic outriggers |
| Npog | Tag nrho enclosure (nrog rau lub cav npog) |
| Roj siab (MPa) | 20 |
| Radiator | Heavy-duty dual kiv cua FLJ-136 Jintai |
II. Core Product Advantages
1. Crawler-mounted txav nrog superior underground maneuverability Nruab nrog hnyav-lub luag hauj lwm engineering crawler chassis, nws muaj zog traction thiab zoo heev nce toj muaj peev xwm, ua kom ruaj khov nyob rau hauv av nkos, nplua, pob zeb, thiab qhov av tsis sib xws. Lub cev me me thiab hloov tau yooj yim ua rau nws haum rau me me -section tunnel tsim, tso cai rau kev txav chaw yooj yim yam tsis tas yuav muaj kev pab cuam trailer.
2. Kev ua haujlwm ywj pheej ntawm ob txhais caj npab drilling, ob npaug ntawm kev tsim kho Equ nrog ob sab caj npab hydraulic drilling uas tuaj yeem xyaum ib txhij yam tsis muaj kev cuam tshuam, ob npaug ntawm kev ua haujlwm piv rau ib leeg - caj npab drilling rigs. Lub caj npab drilling tuaj yeem qaij nce thiab nqis, viav vias sab laug thiab, thiab ua haujlwm nyob rau hauv tib lub sijhawm los ntawm ntau lub ces kaum, qhov tseeb drilling lub ntsej muag blasting qhov, sidewall pob zeb ntsia liaj qhov rooj qhov, thiab txhawb nqa grouting qhov. Qhov no ua rau txo qis tshaj - khawb thiab underexcavation hauv qhov av, ua kom lub qhov taub zoo dua.
3. Hydraulic imported configuration tag nrho, ruaj khov thiab tsis ua hauj lwm tus nqi Cov tub ntxhais hydraulic system siv cov khoom ntawm zoo - hom, muab lub zog txaus thiab ruaj khov. Cov cuab yeej ua tau zoo ua -hauv kev tiv thaiv- daig me ntsis, tiv thaiv- huab cua drilling, thiab tsis siv neeg tiv thaiv kev ua haujlwm, tiv thaiv cov laum rods thiab cov khoom kom txo tau cov khoom siv tau zoo. Lub tshuab lub cev yog ua los ntawm cov qauv steel tuab, hnav- tiv taus thiab ruaj khov, haum rau ntev - lub sij hawm siab - siv zog pob zeb drilling ua haujlwm.
4 Kev ua haujlwm yooj yim, txuag lub sijhawm thiab kev ua haujlwm Ua haujlwm siab hydraulic pilot tswj nrog lub teeb yuag thiab rhiab joysticks tso cai rau ib tus neeg teb xov tooj kom ua tiav txhua txoj haujlwm drilling, muab cov kev kawm nrawm thiab cov nqi qis. Piv nrog rau kev siv phau ntawv pneumatic ib txwm siv, nws txuag kev ua haujlwm zoo, txhim kho kev tsim kho kev nyab xeeb, thiab ua kom ruaj khov thiab ua haujlwm hauv av.
5. Ntau-kev ua haujlwm tau zoo, rau ntau yam kev ua haujlwm Txhawb kev xaiv rau cov roj ntsha ntshiab lossis diesel- hluav taws xob ob lub zog, ua kom muaj zog ntau dua - siv tau ntev - kev ua haujlwm hauv av. Nws tuaj yeem nruab nrog cov chaw taws teeb wireless, siab - qhov siab ua haujlwm platforms, thiab tshwj xeeb nyuaj- pob zeb drilling tshuab, hloov mus rau siab - pob zeb hardness, siab - thaj tsam roob siab, thiab qhov sib txawv ntawm cov ntoo khaub lig{10}} ntu, txhawb kev hloov kho engineering.
III. Main Application Scenarios - Blasting qhov drilling for highway and railway tunnel excavation - Siv pob zeb bolt, cable bolt, thiab grouting qhov nyob rau hauv qhov av ib ncig ntawm lub pob zeb - Underground roadway excavation and support drilling in mines - Drilling operations for hydraulic water diversion thiab tunnel 5} lub nroog underground corridors thiab underground tej yaam num
IV. Tom qab-Kev muag khoom Guarantee Cov khoom tseem ceeb ntawm tag nrho lub tshuab tuaj nrog ib xyoo - warranty, thiab tag nrho cov khoom siv xws li cov khoom siv, laum pas nrig, thiab cov khoom siv hluav taws xob txuas ntxiv mus. Peb muab cov ntawv qhia ua haujlwm ua tiav thiab cov yeeb yaj kiab qhia, txhawb cov kev taw qhia txog tej thaj chaw deb thiab kev daws teeb meem. Peb ua raws li kev siv cov cuab yeej siv thiab teeb meem tom qab muag thoob plaws hauv cov txheej txheem, ua kom muaj kev txhawj xeeb -kev tsim kho dawb rau cov neeg siv khoom.
